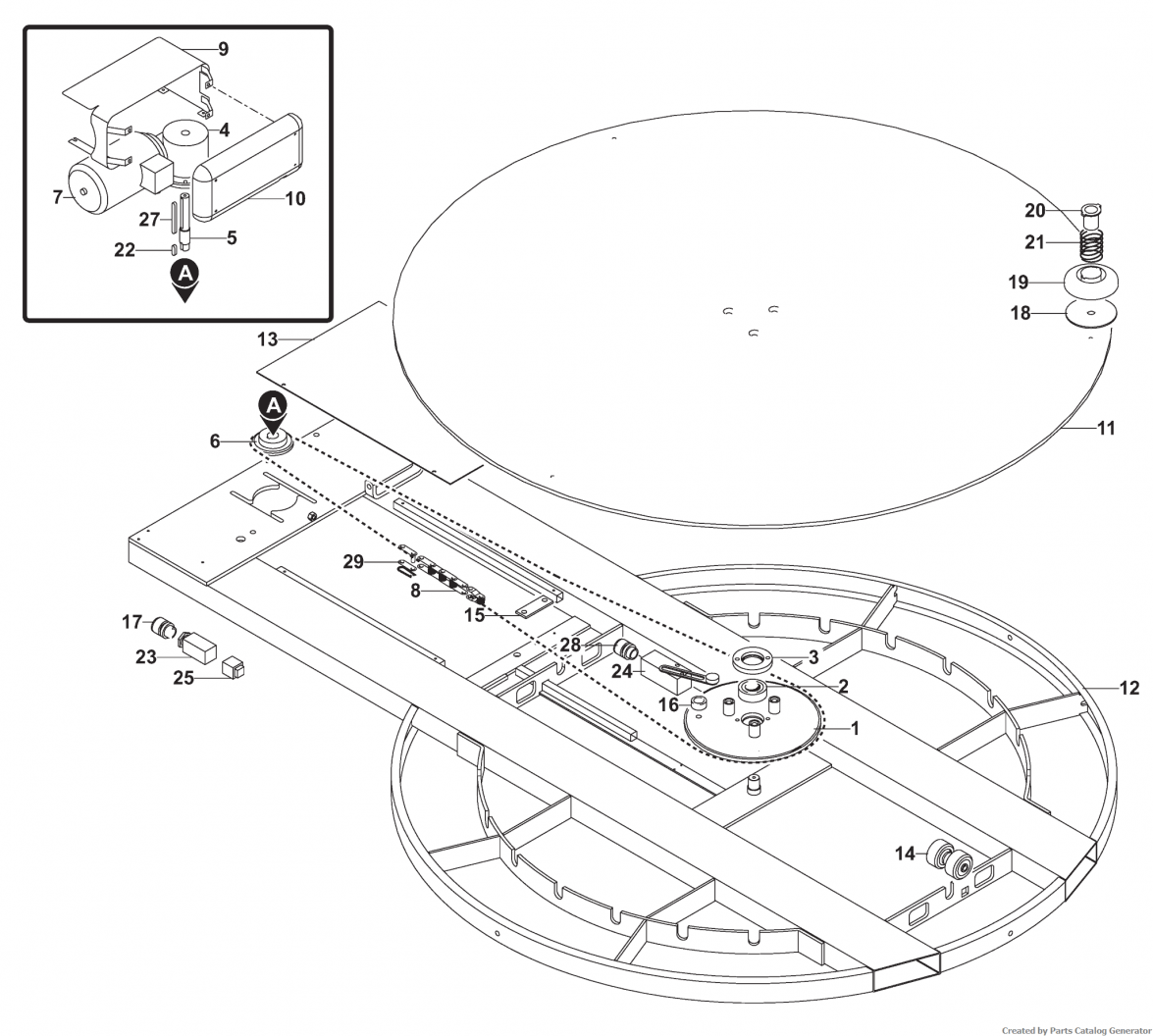

Machine base A 101
Protection
4250300641
Gearbox
0000640722
Motor (Type: CW)
0001340882
Key
0000645101
Key 8X7X30
0000645033
(Variante: D=1800)
4940300187
Pinion
0380610413
(Variante: D=1800)
5340300051
Shaft
3740300318
05-5210300279
5210300279
Pin
5270300001
Spring
0381530023
Handwheel
6220300004
Disk
4520300022
Link Junction Iso 12B-1 3/4X7/16
0000602096
Chain ISO 12B-1 3/4 X 7/16 191 (Variante: D=1650/1800)
0000605999
Cable Conecttor
0001304627
Case
0001357351
Electric Contact
0001353017
Plate
0380602003
Cable Connector (Type: Not in PLURIBALL)
0001304210
Limit Switch (Type: Not in PLURIBALL)
0001309639
Bearing
0000606110
Bushing
0380150094
05-4400300000
4400300000
(Variante: D=1800)
3920300228
Flange
4730300005
Double Wheel For Basement
2544300028
(Variante: D=2200)
4940300180
(Variante: D=2200)
5340300169
(Variante: D=1800/2200/2400 L=500)
0000600799
(Variante: D=2200)
3920300250
